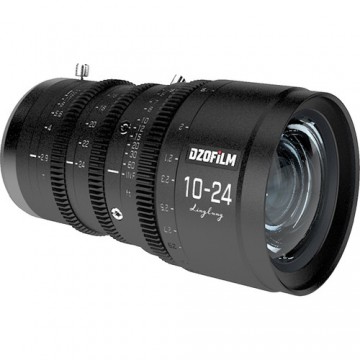

DZOFilm 10-24mm T2.9 MFT Parfocal Cine Lens
- Brand: DZOFilm
- Model: DZO-6226613A
- SKU: A0301A0002G09
- Availability: In Stock
- Option SKU:
- $2,443.85
- Ex Tax: $2,242.06
In addition to this, the lens has near-zero breathing, ensuring consistency in framing, and it provides rounded highlights thanks to a 12-blade iris. True to its cine design, it has a focus rotation of 270° and offers 26 focus marks along the range. It also has an all-metal housing, so it's a durable lens. It has a two-sided focus scale, featuring both imperial and metric measurements. Back focus adjustment of 19.2mm in small increments allows you to efficiently switch this lens between different MFT-mount cameras.
Key Features
- Maintains focus throughout zoom range
- Minimal breathing
- 12-blade iris; rounded highlights
- T2.9-T22 aperture
- 270° focus rotation with 26 focus marks
- 19.7" minimum focus distance
- All-metal housing
- Two-sided focus scale with imperial and metric measurements
- Back focus adjustment for use with different cameras (19.2mm adjustable by +/-0.3mm) adjustment)
- 100° zoom rotation
- 70° iris rotation
- 80mm front diameter
- 0.8 MOD
DZOFilm 10-24mm T2.9 Specs
| Focal Length | 10 to 24mm |
| Lens Mount | Micro Four Thirds |
| Format | MFT |
| Image Circle | 21.6 mm |
| Maximum T-Stop | T2.9 |
| Minimum T-Stop | T22 |
| Diagonal Angle of View | MFT: 92.5 to 49.3° |
| Horizontal Angle of View | MFT: 79.7 to 40.3° |
| Minimum Focus Distance from Image Plane | 19.69" / 50 cm |
| Iris Blades | 12 |
| Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch Iris: 0.8 MOD / 32 Pitch Zoom: 0.8 MOD / 32 Pitch |
| Front Diameter | 80 mm |
| Filter Thread | 77 mm |
| Focus Scales | Metric, Imperial |
| Focus Rotation | 270° |
| Iris Rotation | 70° |
| Zoom Rotation | 100° |
| Zoom Ratio | 2.4x |
| Length | 6.11" / 155.1 mm |
| Weight | 2.43 lb / 1.1 kg |
| Package Weight | 3.82 lb |
| Box Dimensions (LxWxH) | 8.8 x 5.5 x 5.4" |
A parfocal cine lens, the DZO 10-24mm T2.9 MFT Lens from DZOFilm is designed to maintain focus as you zoom in or out. Although parfocal lenses can have some small focus changes, the amount is minimal and you can keep overall focus consistency throughout the zoom range.
