DZOFilm DZO 20-70mm T2.9 MFT Parfocal Cine Lens

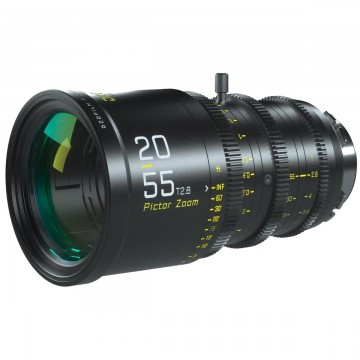

DZOFilm Pictor 20 to 55mm T2.8 Super35 Parfocal Zoom Lens (PL Mount and EF Mount)

  • Brand: DZOFilm
  • Model: DZO-7220002B
  • SKU: A0301A0003G09
  • Availability: In Stock
  • Option SKU:
  • $3,798.70
  • Ex Tax: $3,485.05
Quantity

Professional Cine Lenses with Concrete Build

DZOFILM is devoted to exploring the aesthetic of film and design of optics.
Both mechanics and optics are designed to be compact and versatile,
allowing users to enjoy the smooth and precise operation
and every shooting moment with Pictor Zoom.

Parfocal Design

Center image stay sharp during zooming in or out

No matter from close-up to wide shot,
Or rapidly zoom out to long shot,
Under Parfocal design, focus keeps still all the way along

Minimal Breathing

Thanks to the floating structure, the breathing of Pictor Zoom lenses
are negligible during focusing

Versatile in Ultra Compact

At just 1.6kg (3.5 lbs), Pictor Zoom can be easily mounted on crane, jib, tripod, ROV or other
moving platforms, and provides safer and more efficient work methods by reducing heavy lifting.
Be a better Run-and-Gun Filmmaker, no fear of any complicated scenes or quick shooting. Time saving
without frequent lens changing, Pictor zoom, in no way miss an inspiring moment.


DZOFilm Pictor 20 To 55mm T2.8 Super35 Parfocal Zoom Lens (PL Mount And EF Mount) Specs

Focal Length20 to 55mm
Lens MountARRI PL
FormatSuper35/APS-C
Image Circle31.1 mm
Maximum T-StopT2.8
Minimum T-StopT22
Iris Blades16
Gear MOD & PitchFocus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch
Zoom: 0.8 MOD / 32 Pitch
Front Diameter95 mm
Filter Thread86 mm
Focus ScalesImperial
Zoom Ratio2.75x
Electronic CommunicationNo
Lens SupportLens Support Foot
Length6.46" / 164 mm
Weight3.35 lb / 1.52 kg
