OM System LS-P1
- Brand: OM System
- Model: OM-LSP1
- SKU: A0605A0004G31
- Availability: In Stock
- Option SKU:
- $201.70
- Ex Tax: $185.05

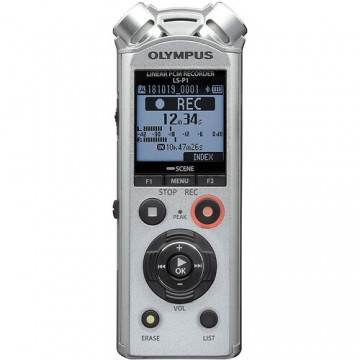

The silver 4GB Olympus LS-P1 is a portable handheld digital audio recorder intended for capturing interviews, speeches, music, and sound effects in compressed, standard, or high-resolution formats. It features selectable recording modes, noise cancellation, an 18mm dynamic speaker, and a 3.5mm headphone output. Use the built-in low-noise stereo microphones or connect an external mic to the 3.5mm mini-jack input. Record to the 4GB internal memory or your own microSD cards in uncompressed linear PCM format at up to 24-bit / 96 kHz resolution or in compressed MP3 format at up to 320 kb/s resolution.
The backlit 1.43" LCD display enables clear viewing of menus and selections, which are easily changed via the navigation buttons. The lightweight metal-bodied LS-P1 is powered by the included AAA NiMH battery and can be recharged via connection of its retractable USB 2.0 jack to a computer or an AC adapter (available separately).
Built-in, low-noise microphones feature 90° orientation for an optimized stereo field
Advanced amplifier circuit suppresses interference while an Olympus-developed codec reduces noise during AD/DA music conversion
Record in PCM (WAV) format at up to 24-bit / 96 kHz or in MP3 format at up to 320 kb/s

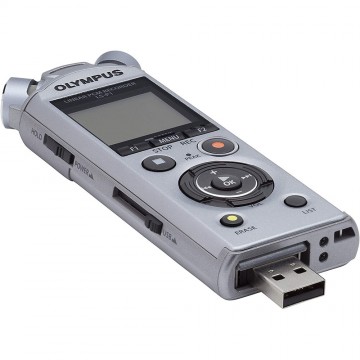

Direct USB connectivity for easy data storage and transfer
Manually or automatically set your recording level and activate the integrated limiter function to ensure distortion-free audio capture
Selectable low-cut filter reduces low-frequency hum and rumble
Dedicated calendar button allows quick access to audio files, which are automatically marked with the date and displayed in the calendar format
Includes a tripod adapter for easy attachment to your preferred tripod stand
Selectable voice balancer cuts high- and low-frequency components and compensates low-volume portions during playback
Noise cancellation reduces ambient noise
Directional quality control technologies narrow the pickup angle of the microphone to increase the recording level and focus on the intended sound source in noisy environments
Recording
Type | Digital |
Mode | Stereo / Mono |
Recording Format | MP3, PCM (WAV) |
Bit-Depth | 24 16 |
Bit-Rate | 64 kbps - 320 kbps |
Sample Rate | 44.1 kHz - 96 kHz |
Recording Time | PCM Stereo: 5.5 Hours (44.1 kHz/16-Bit PCM/WAV) PCM Stereo: 1.5 Hours (96 kHz/24-Bit PCM/WAV) MP3 Stereo: 24.5 Hours (44.1 kHz MP3) |
One-Click Recording | Yes |
Voice Activated Recording | Yes |
Microphone Type | Internal Stereo - 2 Elements |
Microphone Sensitivity | High Medium Low Manual SENS Setting Auto SENS Setting |
Pickup Pattern | Cardioid (Unidirectional) |
Frequency Response | 20 Hz - 44 kHz @ 96 kHz Sample Rate / 24 Bit PCM (WAV) 20 Hz - 42 kHz @ 88.2 kHz Sample Rate / 24 Bit PCM (WAV) 20 Hz - 23 kHz @ 48 kHz Sample Rate / 16 Bit PCM (WAV) 20 Hz - 21 kHz @ 44.1 kHz Sample Rate / 16 Bit PCM (WAV) 20 Hz - 20 kHz @ 44.1 kHz Sample Rate / 320 kbps MP3 20 Hz - 17 kHz @ 44.1 kHz Sample Rate / 128 kbps MP3 20 Hz - 13 kHz @ 44.1 kHz Sample Rate / 64 kbps MP3 |
Playback
Playback Formats | PCM (WAV) MP3 |
Bit-Rate | MP3: 8 - 320 Kbps |
Speaker | Yes |
Speaker Size | 0.7" / 18 mm |
Power Output | 150 mW |
Features
Display Size/Type | 1.43" LCD Backlit with 108 x 84 Resolution |
Equalizer Settings | Bass, Treble |
Indicators | Power, Low Battery, Recording, Voice Volume |
Erase Protect | Yes |
Message Folder | None |
Voice E-Mail Function | None |
On Screen Clock | No |
Safety Lock | Yes |
Search | Calendar Search Review Track Mark |
Power
Battery Type | 1 x AAA |
Battery Life (approx.) | Recording: 39 Hours @ 44.1 kHz 64 Kbps MP3 Recording: 28 Hours @ 44.1 kHz 16 Bit PCM (WAV) Playback: 31 Hours @ 44.1 kHz 64 Kbps MP3 Playback: 28 Hours @ 44.1 kHz 16 Bit PCM (WAV) |
Power Adapter | Yes |
General
Internal Memory | Installed: Flash Memory - 4 GB |
Compatible Memory Cards | microSDHC (32 GB Max) |
Connectors | 1/8" mini Female Microphone In 1/8" mini Female Headphone Out USB 2.0 Male Auxiliary Out |
USB | USB 2.0 (A) |
Operating System Support | Windows, macOS/OS X |
Dimensions (WxHxD) | 1.6 x 4.3 x .6" / 39.6 x 108.9 x 14.4 mm |
Weight | 2.6 oz / 75 g |
Warranty Length | Limited 1-Year Warranty |
Packaging Info
Package Weight | 0.585 lb |
Box Dimensions (LxWxH) | 6.1 x 5 x 1.7" |
